Features

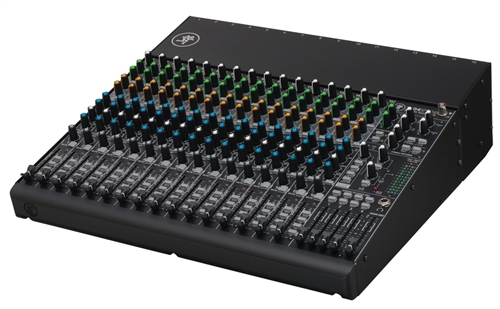

- 16-channel mixer featuring our signature high-headroom, low-noise design
- 16 boutique-quality Onyx mic preamps - Ultra-wide 60 dB gain range, 128.5 dB dynamic range, +22 dBu line input handling, Extended frequency response, Distortion under 0.0007% [20 Hz – 50 kHz]
- Improved RF rejection, perfect for broadcast applications
- Phantom power for condenser mics
- 16 high-headroom line inputs with +4/–10 operation control
- 16 balanced inserts perfect for integrating outboard ear
- 3-band EQ with sweepable midrange
- 18 dB/oct 75 Hz low-cut filter on mic input channels
- Four aux sends, level, pan and solo and overload/mute LEDS on each channel
- Four stereo returns, eight direct outs and four group/bus outputs
- 60 mm long-wearing log-taper faders
- Control room / phones multi-input source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
- Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)
- Multi-voltage power supply for worldwide use
|
|
|
|
|
|
|
|
|
